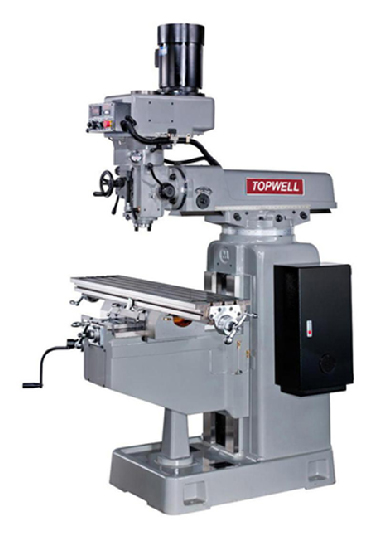

MODEL: 5VKF
5VKF SPECIFICATIONS
|
Specifications |
5VKF |
|
Table size |
10"x50" (254x1270 mm)/10"x54"(254x1270mm)/12"x50"(305x1270 mm) |
|
Table travel |
36" (914 mm) |
|
Saddle travel |
16.25" (413 mm) |
|
Knee travel |
16" (406 mm) |
|
Quill diamete |
4.17" (106 mm) |
|
Quill travel |
5.5" (140 mm) |
|
Ram travel |
20" (508 mm) |
|
Spindle motor |
5 HP Inverter drive |
|
Spindle taper |
NT-#40 |
|
Quill power feedrate |
0.0017", 0.0033", 0.0054" / Rev. (0.04, 0.083, 0.138 mm / Rev.) |
|
Spindle speeds RPM |
60 - 4200 |
|
Weight |
1650 kgs |
All specifications and designs are subject to change without notice.
|
Optional accessories |
|
|
| Hardened-grounded table | Digital read-out | Up / down feed system |
| Front / back way cover | Power-feed system | Electrical lubrication system |
| Grounded & hardened 3 axis slide way | Electrical cabinet | Work light |
| Draw bar | Coolant system | Leveling pad |
| Tool box & tool set | Coolant tray |
|
